12V vs 24V vs 48V Systems: When to Step Up Voltage, Cable Losses & Inverter Choice

Choosing the right system voltage — 12 V, 24 V, or 48 V — is one of the most important design decisions for any off-grid, caravan, or tiny home setup.
Each voltage level affects efficiency, cable thickness, inverter sizing, and overall cost of your solar power system.

This guide explains when it makes sense to stay at 12 V and when to step up to 24 V or 48 V for better performance and reduced losses.

? 1. Understanding System Voltage Basics

Your system voltage is the nominal DC voltage of your battery bank and DC wiring — usually 12 V, 24 V, or 48 V.

⚡ 2. Why Voltage Matters: Power, Current & Heat

Electrical systems follow this rule:

Power (W) = Voltage (V) × Current (A)

That means for the same power, doubling voltage halves the current.

Example:
Running a 2 000 W inverter at 12 V = 167 A
At 24 V = 83 A
At 48 V = 42 A

Lower current =
✅ Thinner cables
✅ Less voltage drop
✅ Higher efficiency
✅ Cooler operation

This is why high-power off-grid and hybrid inverters use 24 V or 48 V battery banks — they handle heavy loads without massive copper cables.

? 3. 12 V Systems — Simple & Compatible

Best for: Caravans, camper trailers, 4WDs, and small portable systems.

✅ Advantages

• Compatible with most DC appliances (fridges, lights, fans, pumps).

• Simple wiring and widely available accessories.

• Easier integration with vehicle alternators and DC-DC chargers.

• Low cost for smaller solar setups (≤ 1 000 W inverter).

⚠️ Limitations

• High current on larger loads (e.g. 2 000 W inverter draws ~167 A).

• Thick, heavy cables required.

• Higher voltage drop over long runs.

? Tip: Stay with 12 V if your inverter is under 1.5–2 kW and your cable runs are short (under 3 m).

⚙️ 4. 24 V Systems — Efficient Mid-Range Power

Best for: Tiny homes, medium off-grid setups, caravans running induction cooktops, larger fridges, or air-cons.

✅ Advantages

• Current halved compared to 12 V systems.

• Cables are thinner and cheaper for the same power.

• Inverters up to 3 kW are easily available.

• Reduced voltage drop across long cable runs.

⚠️ Limitations

• Requires 24 V appliances or DC-DC converters for 12 V loads.

• Charging from vehicle alternators requires a 24 V-compatible DC-DC charger.

• May need to series-pair 12 V batteries (e.g. 2 × 100 Ah in series = 24 V 100 Ah).

? Tip: Step up to 24 V when total inverter power exceeds 2 000 W or when cable runs are long (> 5 m) to reduce losses.

? 5. 48 V Systems — For High-Power & Permanent Off-Grid

Best for: Large cabins, workshops, or full residential systems using 5 kW+ hybrid inverters and multiple solar strings.

✅ Advantages

• Lowest current = smallest cable gauge.

• Higher inverter efficiency (less heat).

• Ideal for large solar arrays and battery banks (10 kWh+).

• Future-proof for expansion and AC-coupled setups.

⚠️ Limitations

• Incompatible with 12 V/24 V appliances without a step-down converter.

• Slightly higher component cost (MPPT, BMS, fuses).

• Wiring must comply with AS/NZS 3000 due to higher DC voltages.

? Tip: Choose 48 V when using inverters ≥ 4 kW, hybrid systems, or solar arrays above 2 kW feeding a single battery bank.

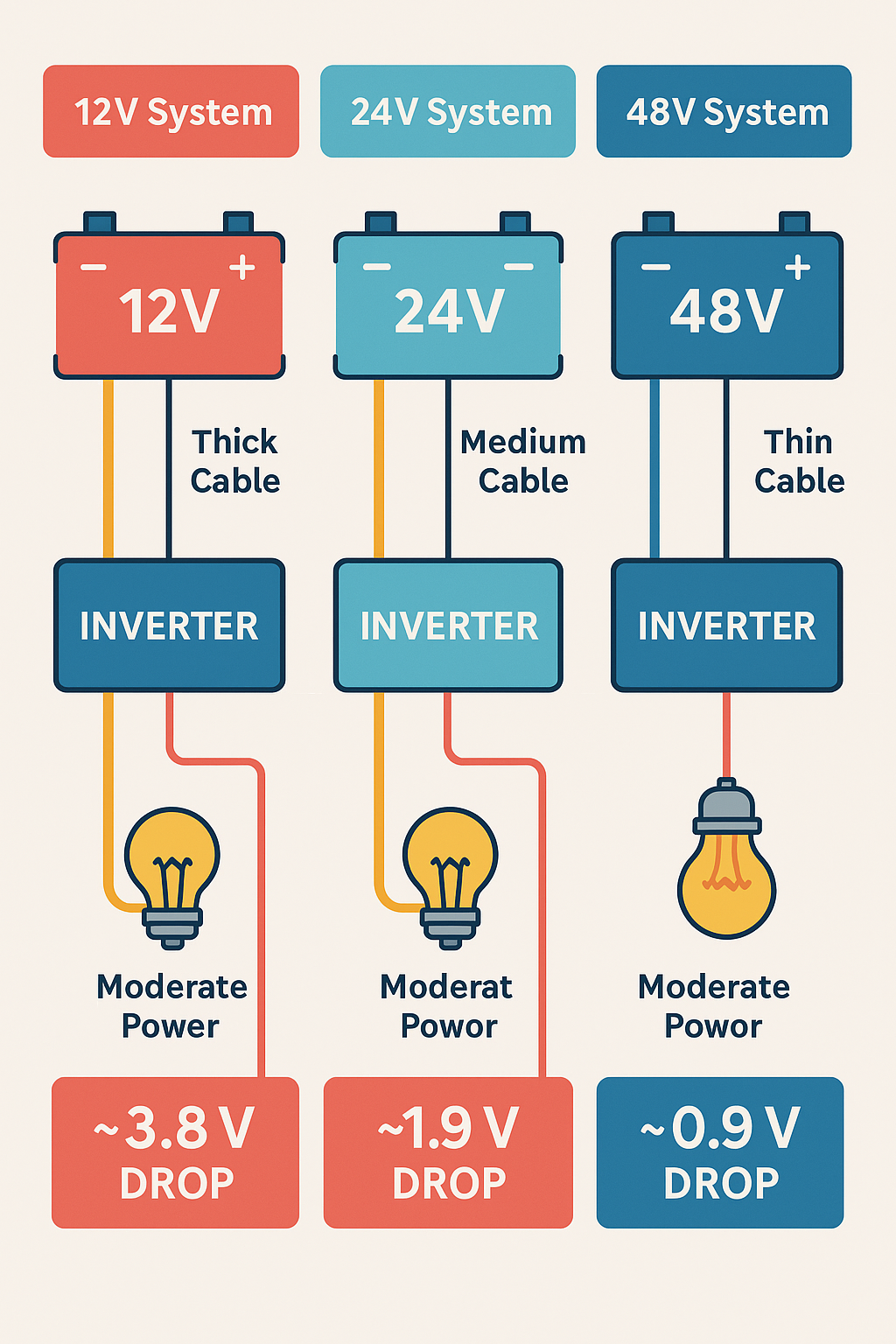

? 6. Cable Loss & Voltage Drop Explained

Voltage drop occurs when current travels through a cable with resistance.
Even small losses waste energy as heat and can cause inverter or BMS low-voltage trips.

Voltage Drop Formula:
ΔV = I × R (current × resistance)

? The higher the system voltage, the smaller the voltage drop — meaning more of your solar power reaches the battery and inverter.

⚙️ 7. Inverter & Component Compatibility

? 8. Quick Decision Guide
